Game-Changing Precision: Unlock Ultra-Stable Flight with RTK Module HM-D20

In the fast-evolving world of drones, autonomous robots, and precision geospatial applications, positioning performance defines success. Poor satellite reception, weak fixed solution rates, bulky hardware, slow signal recovery, and unreliable performance in challenging environments are persistent headaches for engineers, developers, and drone enthusiasts. Many RTK modules promise accuracy but fail under real‑world stress—leaving projects delayed, flights unstable, and data inaccurate. If you demand a positioning solution that combines ruggedness, simplicity, precision, and proven performance, the RTK Module HM-D20 is the revolutionary answer you’ve been searching for. This integrated helical‑antenna RTK module redefines expectations with field‑tested reliability, plug‑and‑play convenience, and professional‑grade positioning power.

Why RTK Module HM-D20 Dominates Real-World Drone and Robot Testing

Real‑world performance is the ultimate benchmark, and HM-D20 has been rigorously battle-tested against top industry modules including UM980, UM960, and u‑blox F9P. The results confirm that RTK Module HM-D20 delivers consistent, competitive positioning across dynamic, complex, and harsh environments.

In comprehensive drone flight tests across six challenging scenarios—dense tree canopy, building facades, large water surfaces, overpass undercrossings, high‑voltage power lines, and extreme building canyons—the RTK Module HM-D20 achieved an average dynamic fixed solution rate of 89.5%. This places it nearly level with UM960 (90.5%) and far ahead of u‑blox F9P (73.3%), proving its superior capability to maintain reliable RTK fixed solutions during real‑time operation.

In open‑sky environments, RTK Module HM-D20 performs almost identically to high‑end premium modules, with performance differences nearly negligible. Under dense tree canopy, RTK Module HM-D20 maintains a fixed solution rate of 73%, ensuring usable positioning even in heavy natural occlusion. During bridge undercrossing tests, while RTK Module HM-D20 shows a maximum fixed‑solution recovery time of 28.4 seconds, its fully integrated design and strong signal retention make it highly resilient for continuous field deployment.

Across high‑voltage power line inspections and extreme building canyon flights, RTK Module HM-D20 maintains trajectory stability and centimeter‑level relative accuracy, with only minor deviations observed in controlled comparisons. In the most constrained building canyon scenario, RTK Module HM-D20 outperforms u‑blox F9P by a significant margin, keeping positioning valid when competing modules lose lock entirely. These test results confirm that RTK Module HM-D20 is not just another RTK component—it is a robust, mission‑ready positioning engine built for reliability.

Revolutionary Integrated Four-Arm Helical Antenna Architecture

What truly separates RTK Module HM-D20 from standard RTK modules is its groundbreaking integrated four-arm helical antenna system. No external antenna, no extra cables, no signal loss from connectors, and no complicated assembly required. This all‑in‑one mechanical design streamlines integration, reduces points of failure, and improves overall signal efficiency.

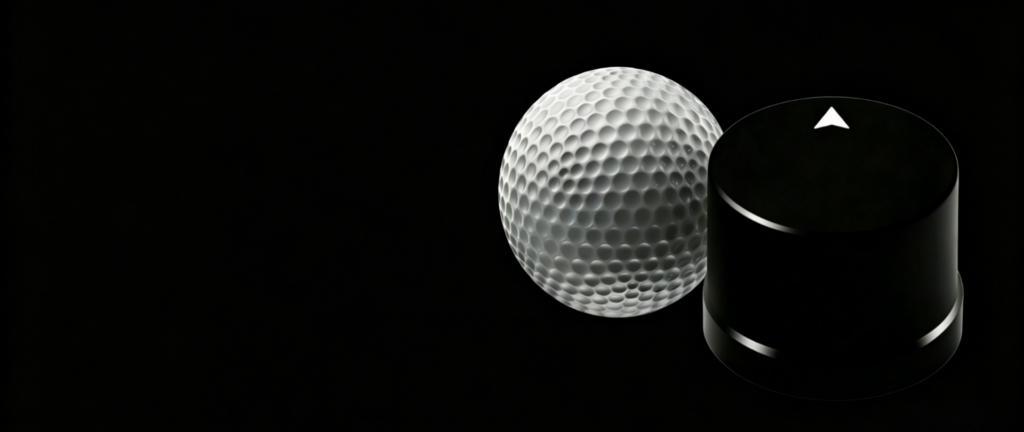

Weighing only 20g and measuring Φ44×37mm, RTK Module HM-D20 is engineered specifically for weight‑ and space‑constrained platforms such as small UAVs, robotic dogs, portable mapping devices, and lightweight autonomous robots. Every gram saved extends flight time, improves maneuverability, and increases payload capacity—critical advantages for commercial and industrial drone operations.

The built‑in helical antenna supports L1/L5 multi‑frequency reception with high gain (≥40dB), enhancing signal penetration, anti‑interference ability, and response speed in weak or partially blocked environments. Combined with an IP67 waterproof rating and an operating temperature range of ‑40℃ to 85℃, RTK Module HM-D20 performs reliably in rain, snow, dust, high heat, and freezing conditions. Whether deployed on construction sites, farmland, power grids, or disaster‑response missions, RTK Module HM-D20 remains consistent and durable.

Industrial-Grade Centimeter-Level Positioning Accuracy

RTK Module HM-D20 supports full multi‑constellation satellite reception, including GPS L1/L5, BeiDou B1/B2A/B2I, GLONASS G1, Galileo E1/E5, QZSS L1/L5, and IRNSS L5. This wide frequency coverage strengthens satellite capture speed and improves positioning stability in challenging environments.

With RTK horizontal accuracy: 0.01m +1ppm CEP and vertical accuracy: 1.5cm +1ppm, RTK Module HM-D20 delivers professional precision for aerial surveying, 3D mapping, precision agriculture, infrastructure inspection, and scientific research. The module outputs standard NMEA 0183 data at 10Hz and accepts RTCM differential input, fully compatible with Qianxun CORS and other mainstream differential services.

This level of accuracy ensures waypoint flight consistency, stable hovering, sharp trajectory control, and high‑quality point‑cloud data output. For drone mapping projects, RTK Module HM-D20 reduces alignment errors, improves model clarity, and supports reliable post‑processing. For autonomous robots, it enables precise navigation, path planning, and obstacle avoidance in dynamic environments.

Effortless Integration and Broad Compatibility

Ease of use is a core advantage of RTK Module HM-D20. It features a TTL UART interface with a default baud rate of 115200 bps, supporting direct plug‑and‑play connection with Pixhawk, PX4, and other widely used flight controllers. No complex configuration is needed out of the box—factory preset parameters allow immediate deployment.

To speed up development, RTK Module HM-D20 provides demo codes and software support for ROS, ROS2, C++, and Python, making it simple to integrate into custom flight stacks, robot control systems, and embedded platforms. The module also supports UDP and transparent transmission modes, adapting to diverse communication architectures.

Whether you are developing a commercial drone, a research robot, a precision agricultural system, or a portable mapping device, RTK Module HM-D20 reduces integration time, lowers development costs, and speeds up time to market. Its compact form factor and flexible interface design make it suitable for prototypes, mass production, and custom OEM/ODM projects.

Ideal Applications for RTK Module HM-D20

RTK Module HM-D20 is a versatile positioning solution across many industries:

• Industrial Drone Inspection: Stable fixed solutions for power lines, bridges, dams, wind turbines, and building facades.
• Aerial Mapping & Surveying: Centimeter‑level data for high‑precision 2D/3D models and GIS applications.
• Autonomous Robots & Robotic Dogs: Reliable navigation in indoor/outdoor mixed environments.
• Precision Agriculture: Accurate positioning for spraying, seeding, and farm monitoring.
• Education & R&D: Compact, affordable, and developer‑friendly for labs and student projects.
• Search and Rescue: Stable positioning in challenging, partially ocurved terrain.

In every application, RTK Module HM-D20 brings robust performance, simple integration, and long‑term durability.

Why RTK Module HM-D20 Is Your Ultimate Positioning Upgrade

If you are tired of unreliable RTK performance, complicated wiring, bulky hardware, and weak signal recovery, RTK Module HM-D20 delivers the complete package. Its integrated helical antenna, ultra‑lightweight design, centimeter‑level accuracy, strong environmental resistance, and field‑proven fixed solution rate make it one of the most capable and cost‑effective RTK modules available.

It outperforms budget modules in challenging environments and matches high‑end products in open scenarios. It reduces assembly time, improves system reliability, and enhances the performance of drones, robots, and precision devices. For professionals and developers who refuse to compromise on positioning quality, RTK Module HM-D20 is the definitive choice.

Stop letting weak positioning limit your project potential. Equip your platform with RTK Module HM-D20 and experience next‑level stability, precision, and confidence in every mission.

order today: https://myrobotproject.com/product/helical-antenna-rtk-module-hm-d20/
