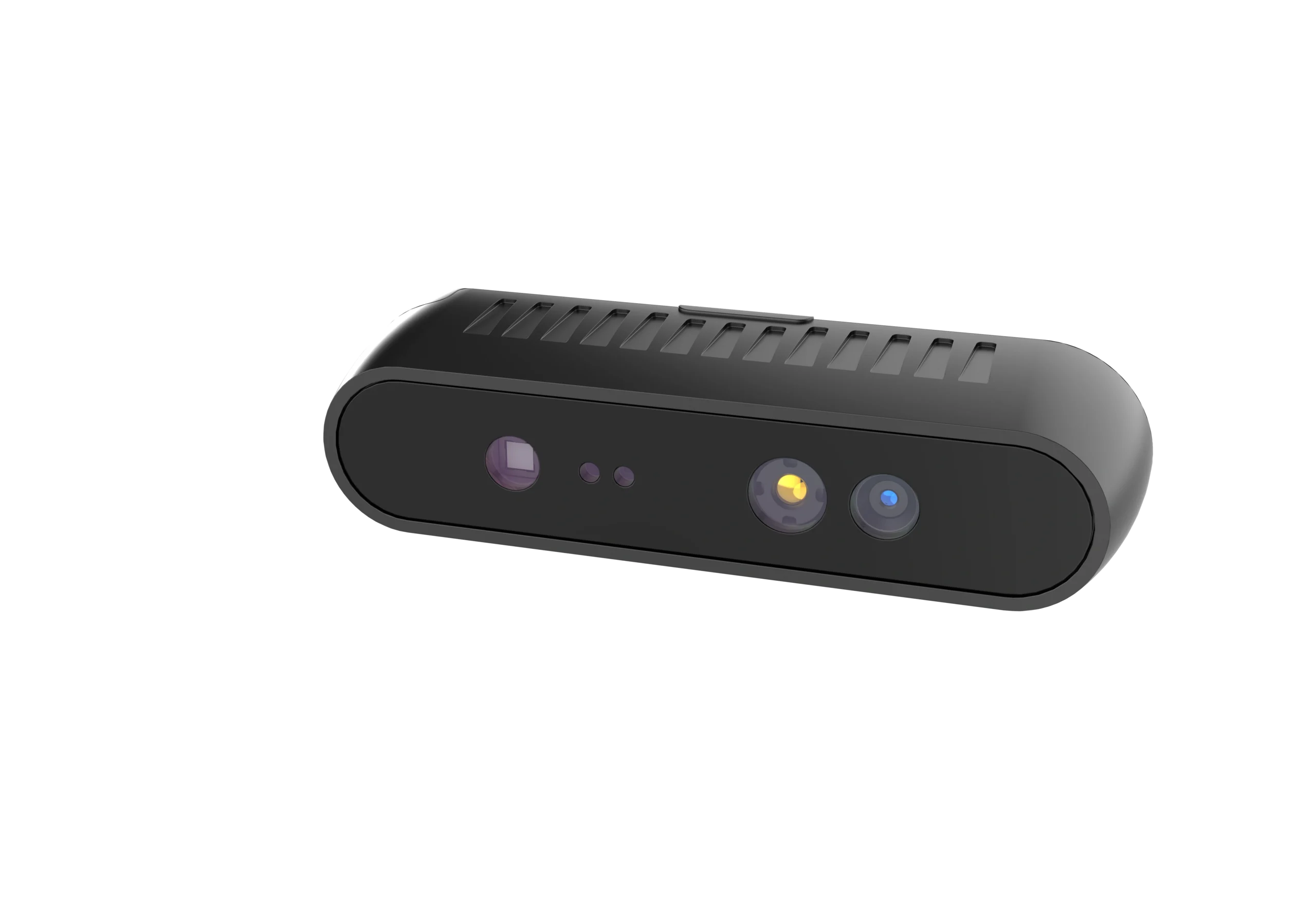

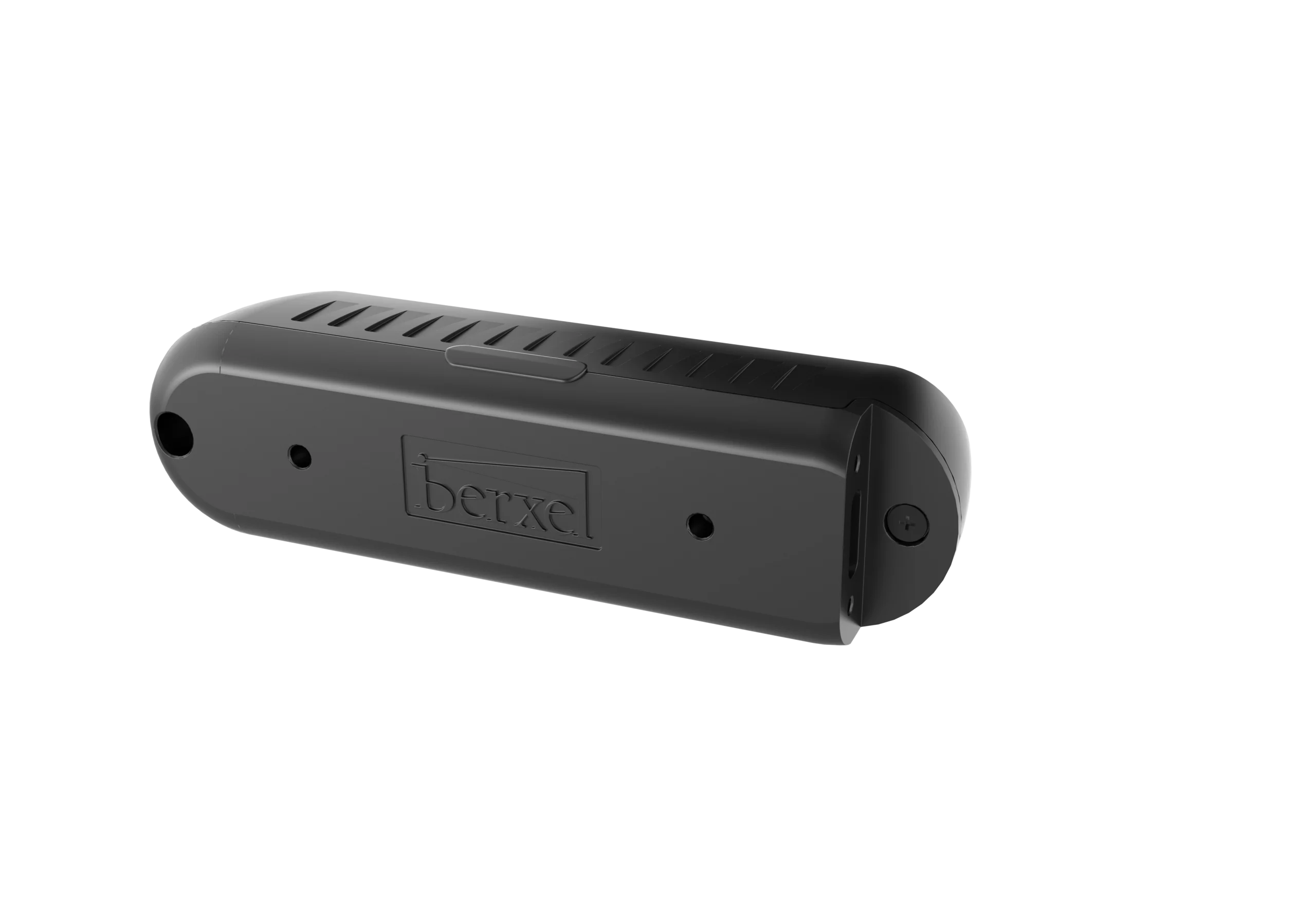

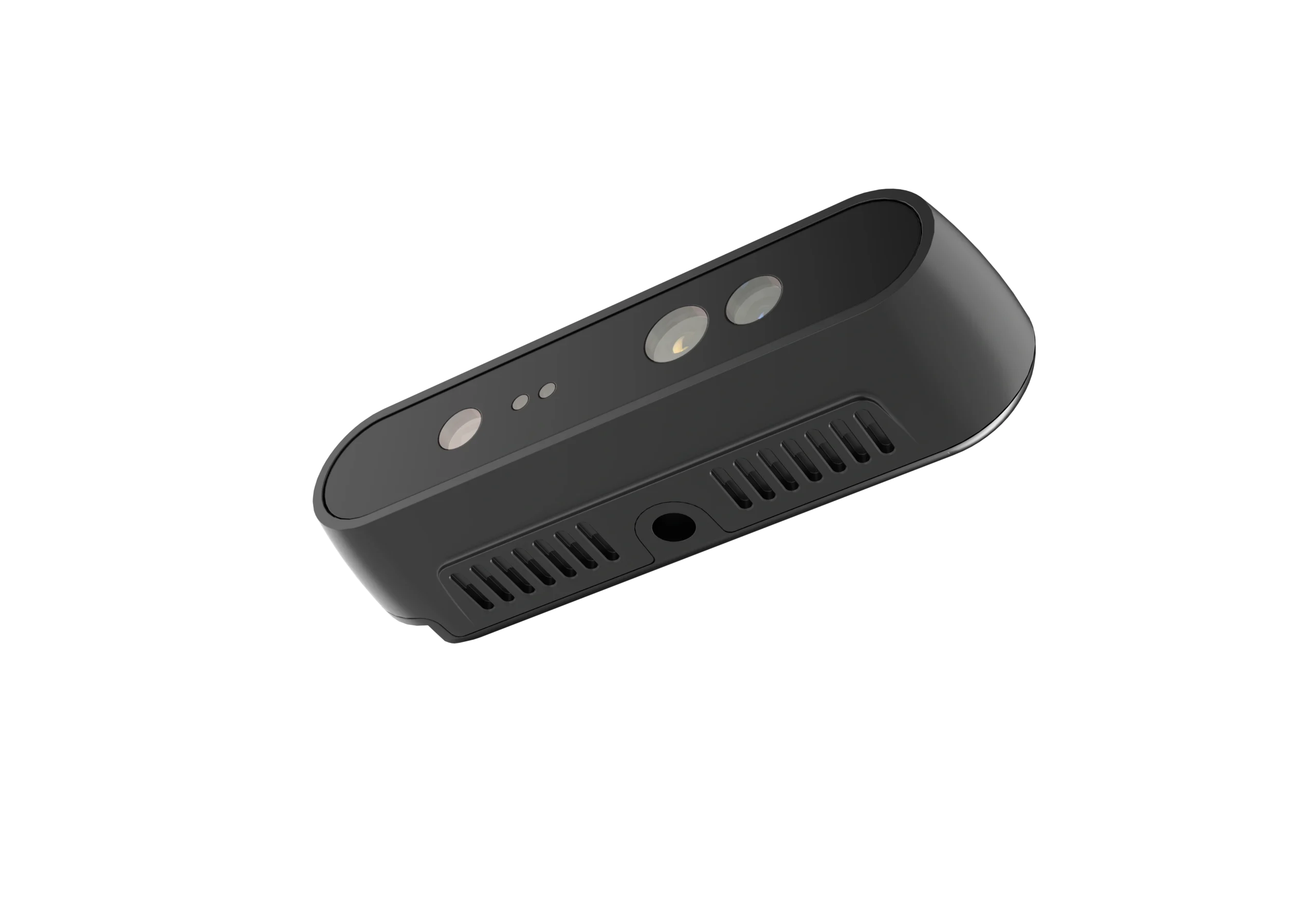

3D Depth Camera P100R
Depth Camera for Robotics,High-precision depth data (0.3–8m range),Ideal for close-range robotic arm grasping and recognition.
$259.00
DIMENSIONS
|
Depth Range |
0.3m~8m |
|
Depth/RGB FPS |
640x400 @ 30fps |
|
Depth Accuracy |
±1mm @ 60cm |
|
Weight |
72g |
|
Dimensions(mm) |
90 x 25 x 25 |
|
Interface |
Type-C |
|
Baseline(mm) |
40 |
|
Power Consumption |
2.5 W |
PRODUCT DETAILS
|
Operating Temperature |
-10°C-60°C |
|
Depth / RGB FOV |
72° ( ± 3° ) x 50.5° ( ± 3° ) |
|
Emitter Module Wavelength |
940nm |
|
RGB Shutter Type |
RollingShutter |
|
Power Supply |
USB 5V |
Unblinking Vision Precision Where It Matters Most
The self-developed algorithm effectively eliminates reflection noise, significantly enhancing the robot’s precision in complex environments. It delivers outstanding performance even in narrow areas such as corners.
Broader Vision, Smarter Robots
With an ultra-wide 72°×51° FoV, it gives robots broader, clearer vision for enhanced safety and operational efficiency.
3D Perception Unlocks Innovation at the Edge
Product Support
Unlock your potential with our Windows/Linux SDK for streamlined development and deployment.
Class 1 Laser Eye-Safe
Seamless Experience, Risk-Free Scanning.
Excellence Depth
From 0.3m to 8m range, with ±1mm accuracy at 60cm
Compact Design Easy Integration
Baseline: 40mm Dimensions: 90mm x 25mm x 25mm
Real-time Depth Streaming
Capable of 640x400 @ 30fps high-speed capture, enabling smooth, real-time scanning free from blur or delay.
RGBD Fusion: See Everything, Avoid Anything
The camera is capable of outputting RGBD fused images to generate denser and clearer point cloud images. Even in special scenarios such as dark or highly reflective environments, it can still provide high-quality depth data, equipping robots with superior obstacle avoidance capabilities.
Customer Reviews
FAQ
1. Q: What type of depth sensing technology does the P100R use?
A: The P100R uses a structured light depth sensing system with polarization technology, projecting infrared patterns and calculating depth through triangulation, which enables high-precision 3D perception even in complex environments.
2. Q: What is the depth measurement range and accuracy?
A: The P100R supports a depth sensing range of approximately 0.3 m to 8.0 m and achieves high precision of up to ±1 mm at around 60 cm, making it suitable for both mid-range perception and high-precision tasks.
3. Q: How does the camera perform on reflective or glossy surfaces?
A: The P100R uses polarization-based structured light to suppress multipath interference caused by reflective surfaces such as metal, glass, or glossy floors, ensuring cleaner depth maps and more reliable detection compared to traditional stereo or standard structured light systems.
4. Q: What data outputs does the P100R provide?
A: The P100R outputs synchronized RGB images, depth maps, and point cloud data, enabling full 3D perception for robotics, inspection, and AI applications.
5. Q: What interfaces are available for integration?
A: The camera supports USB Type-C (UVC) interface for data transmission and power supply, allowing straightforward integration into embedded systems, robots, and industrial platforms.
6. Q: What is the power consumption and operating requirement?
A: The P100R operates at approximately 5V USB power with low power consumption around 2.5W, making it suitable for continuous operation in embedded and mobile systems.
7. Q: What applications is the P100R best suited for?
A: The P100R is ideal for applications such as robotic navigation, object detection, industrial inspection, AGV/AMR systems, and AIoT devices, where reliable depth perception and environmental robustness are critical.
8. Q: How does the P100R compare to traditional stereo or ToF cameras?
A: Compared to stereo vision, the P100R provides more stable depth data in low-texture or reflective environments, and compared to standard ToF cameras, it offers higher precision and reduced interference, making it more suitable for industrial-grade applications.
