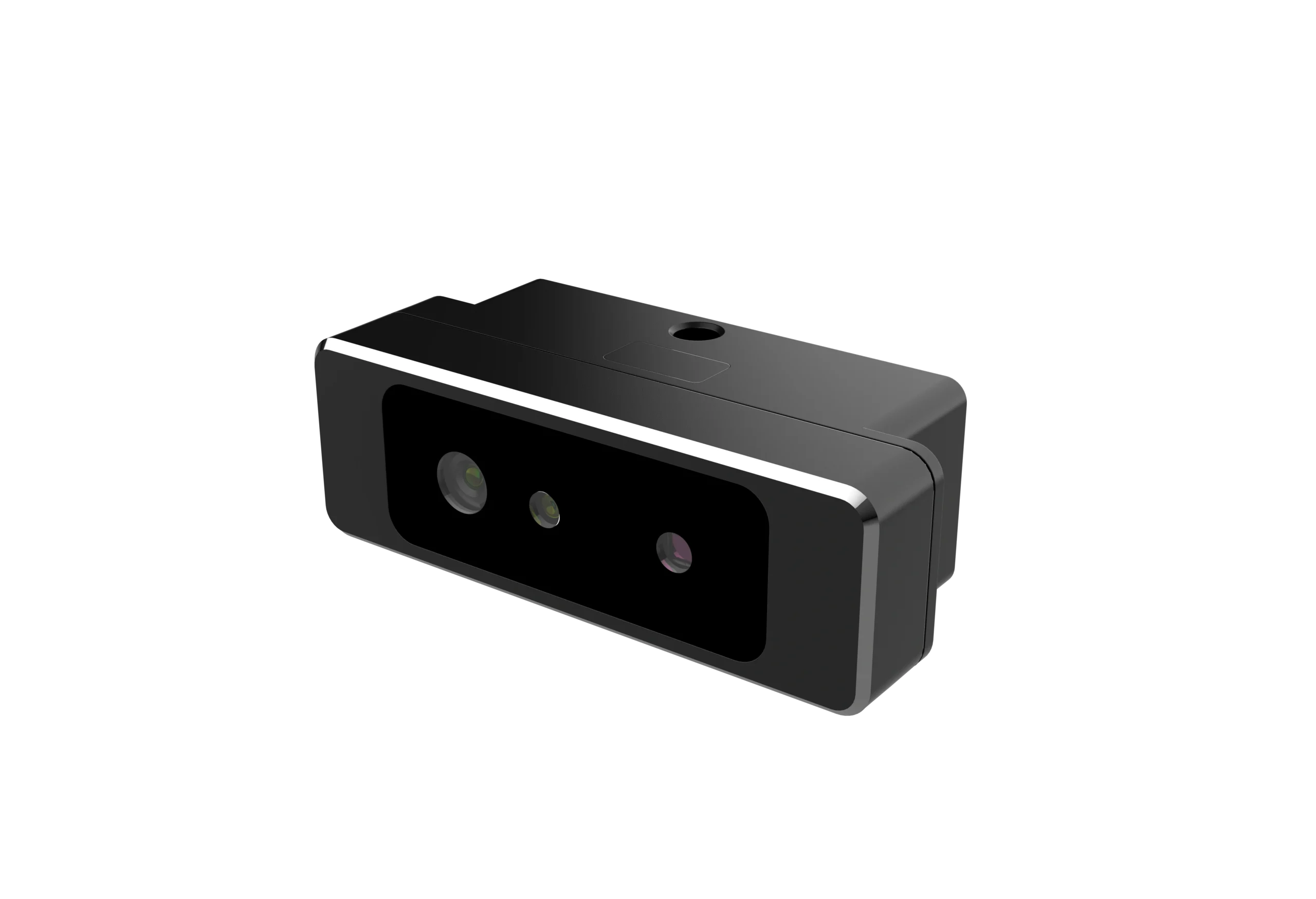

3D Depth Camera P008G
Depth Camera for Robotics,High-precision depth data (0.08–1m range),Ideal for close-range robotic arm grasping and recognition
$299.00
DIMENSIONS
|
Baseline(mm) |
16 |
|
Weight |
77g |
|
Depth Range |
0.08m-1.0m |
|
RGB FPS |
1920x1080@30fps |
|
Depth FPS |
1280x800@30fps |
|
Dimensions(mm) |
70×23.5×30 |
|

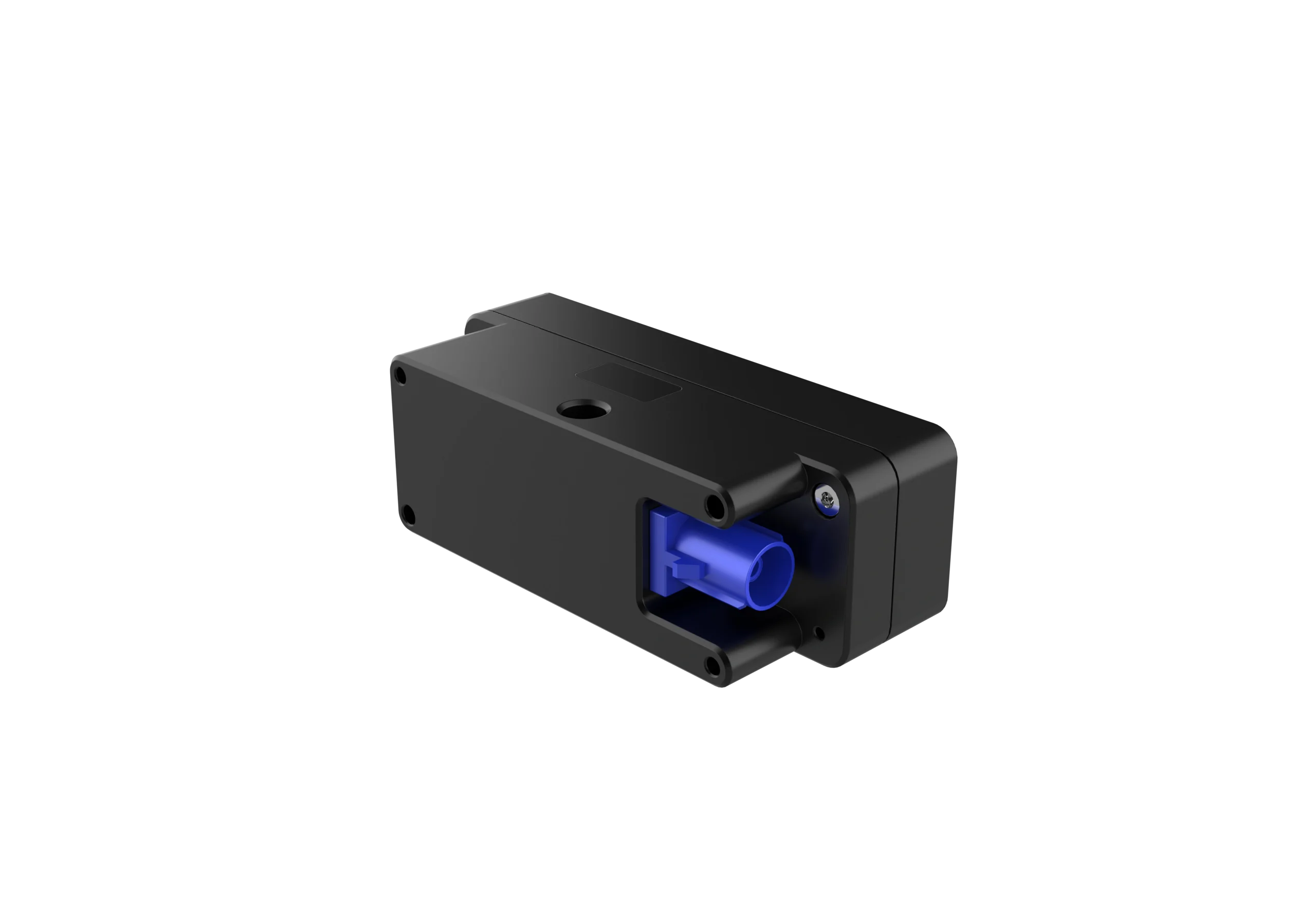

Interface |
Fakra/Type-C |
|
Power Consumption |
2.5 W |
PRODUCT DETAILS
|
Operating Temperature |
15m/s |
|
RGB FOV |
102°(±3°)x64°(±3°) |
|
Depth FOV |
77°(±3°)x54.7°(±3°) |
|
Emitter Module Wavelength |
940nm |
|
RGB Shutter Type |
Windows/Linux |
|
Power Consumption |
RollingShutter |
|
Power Supply |
POC 12V |
Pinpoint Accuracy for Critical Moments
Powered by proprietary algorithms, the system robustly filters out glare and reflection noise, enabling superior robotic precision in cluttered scenes
3D Perception Unlocks Innovation at the Edge
Product Support
Unlock your potential with our Windows/Linux SDK for streamlined development and deployment.
Class 1 Laser Eye-Safe
Seamless Experience, Risk-Free Scanning.
Excellence Depth
From 0.08m to 1m range, with ±1mm accuracy at 60cm
Compact Design Easy Integration
Baseline: 16mm Dimensions: 70mm x 23.5mm x 30mm
Real-time Depth Streaming
Capable of 640x400 @ 30fps high-speed capture, enabling smooth, real-time scanning free from blur or delay.
Designed specifically for robotic arm
8-100cm imaging range with superior FOV outperforms global peers. At the robotic wrist, each extra degree of vision enhances sensitivity
Customer Reviews
FAQ
1. Q: What type of depth sensing technology does the P008G use?
A: The P008G is an RGB-D depth camera that combines active infrared depth sensing with RGB imaging, enabling real-time depth measurement and synchronized color data output for robotic perception tasks.
2. Q: What is the depth measurement range and accuracy?
A: The P008G supports a short-range depth sensing range of approximately 0.08 m to 1.0 m, with high precision up to ±1 mm at around 60 cm, making it suitable for close-range manipulation and inspection tasks.
3. Q: What is the resolution and frame rate of the camera?
A: The camera provides RGB output at up to 1920×1080 @30fps and depth output at up to 1280×800 @30fps, ensuring smooth real-time data streaming for robotic applications.
4. Q: What interfaces are available for integration?
A: The P008G supports interfaces such as Type-C and Fakra, allowing flexible integration into robotic arms, embedded systems, and industrial platforms with stable data transmission.
5. Q: Is the P008G suitable for robotic arm applications?
A: Yes. The camera is specifically optimized for close-range perception and is widely used in robotic arm grasping, object recognition, and precision manipulation scenarios where accurate depth data is critical.
6. Q: What are the power requirements of the module?
A: The P008G operates with a power supply such as 12V POC and has a low power consumption of approximately 2.5W, making it suitable for compact and power-sensitive embedded systems.
7. Q: How does the camera perform in complex lighting conditions?
A: The P008G uses a 940nm infrared emitter and proprietary algorithms to suppress glare and reflection noise, enabling stable depth sensing performance even in challenging lighting environments.
8. Q: What applications is the P008G best suited for?
A: The P008G is ideal for applications such as robotic arm grasping, object sorting, quality inspection, and close-range 3D perception, where high-precision depth data and real-time performance are required.
Applications
Collaborative
Robot
Object
Sorting
Humanoid
Robot
Quality
Inspection
| Weight | 0.077 kg |
|---|
