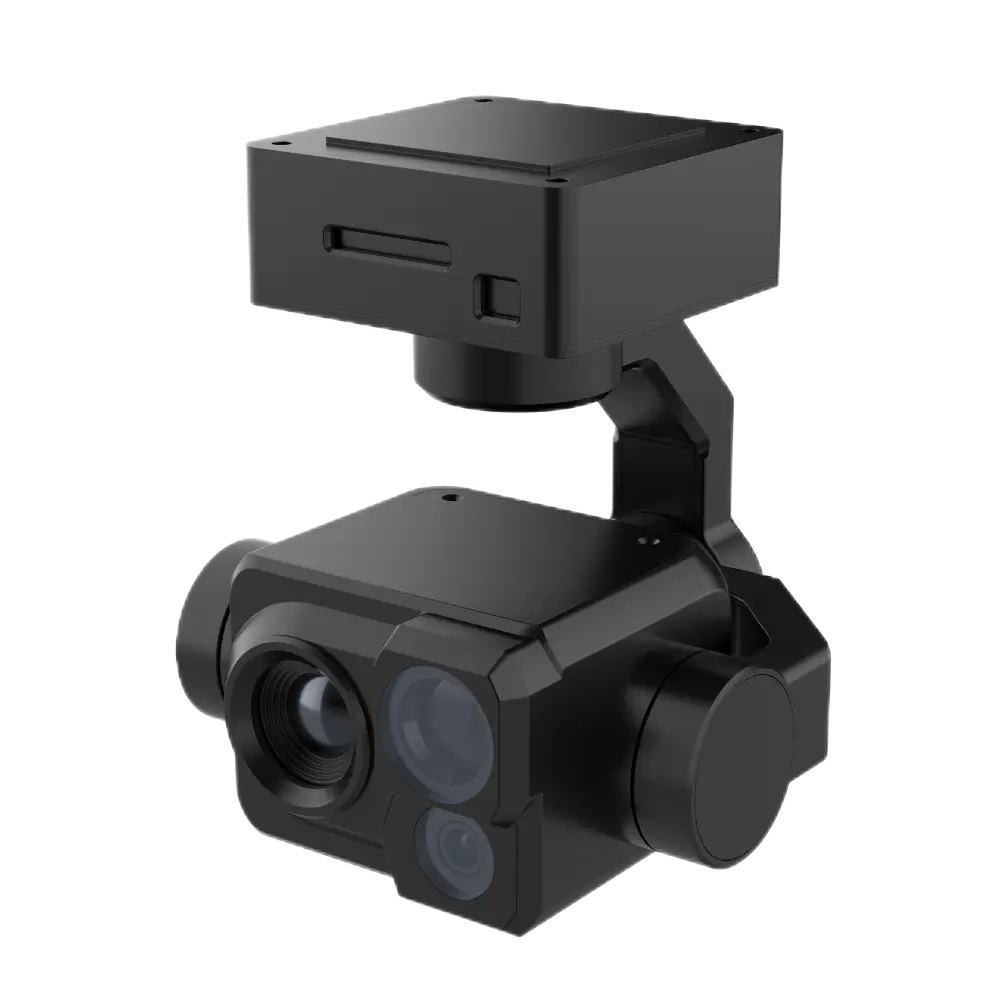

Drone With Thermal Camera AP-SG

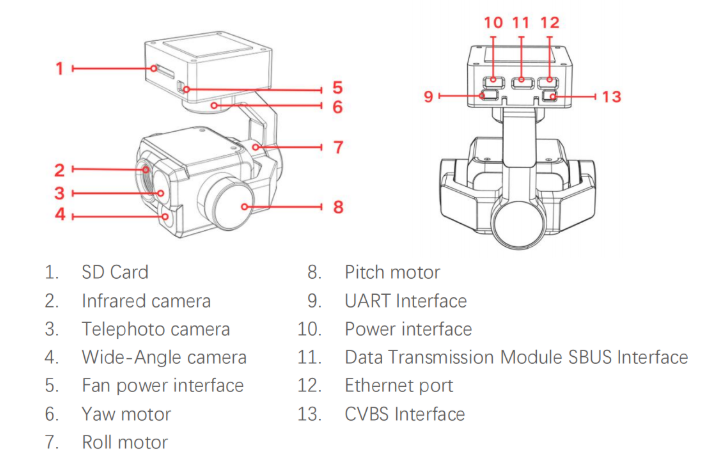

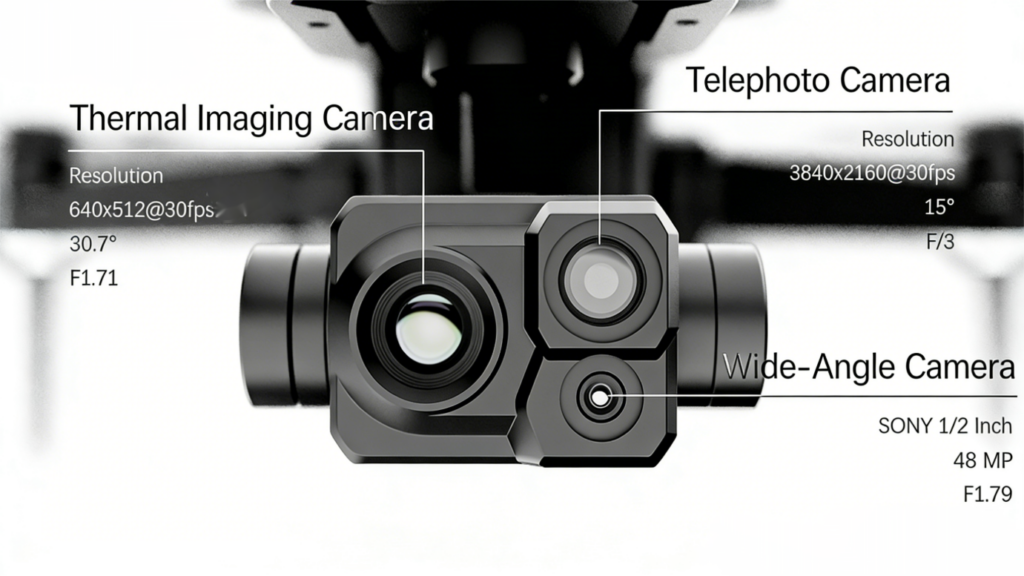

1. Q: What imaging systems are integrated in the AP-SG payload?
A: The AP-SG integrates a multi-sensor system including thermal imaging, wide-angle visible light, and long-focus visible cameras, enabling simultaneous multi-spectrum observation for complex inspection and monitoring tasks.

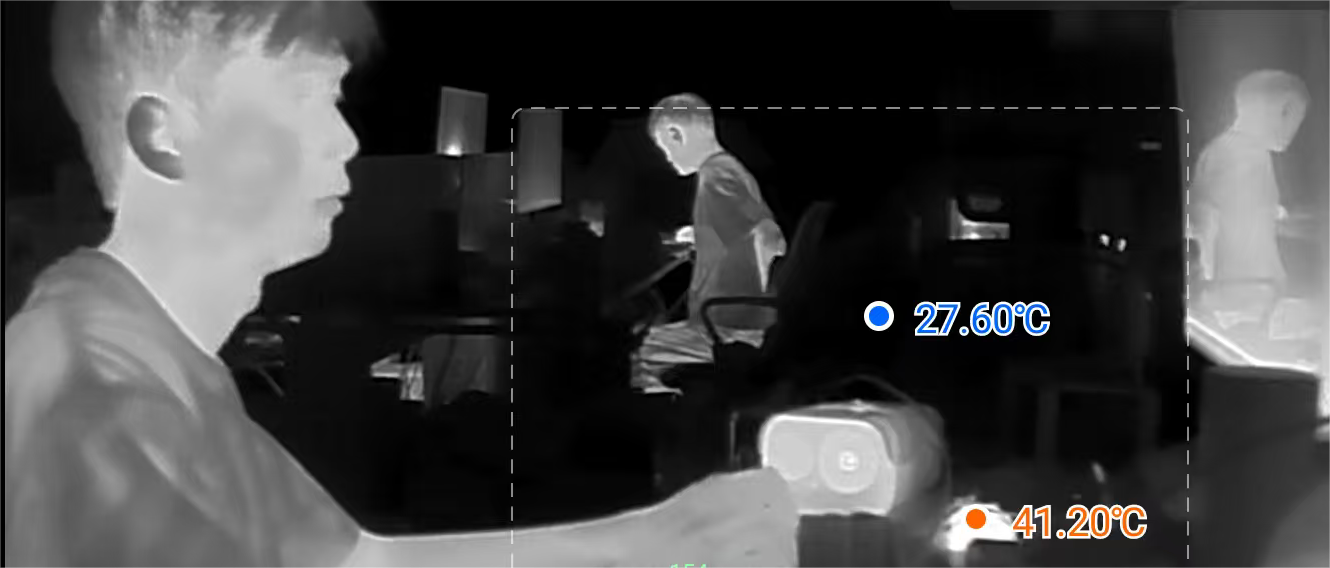

2. Q: What is the thermal imaging capability of the AP-SG?
A: The thermal camera supports high-resolution infrared imaging with real-time temperature measurement, allowing accurate detection of heat sources and abnormal temperature variations in industrial and outdoor environments.

3. Q: Does the AP-SG support long-range inspection?
A: Yes. The system integrates a long-focus visible camera with high zoom capability, enabling long-distance target observation while maintaining image clarity and stability during UAV operations.

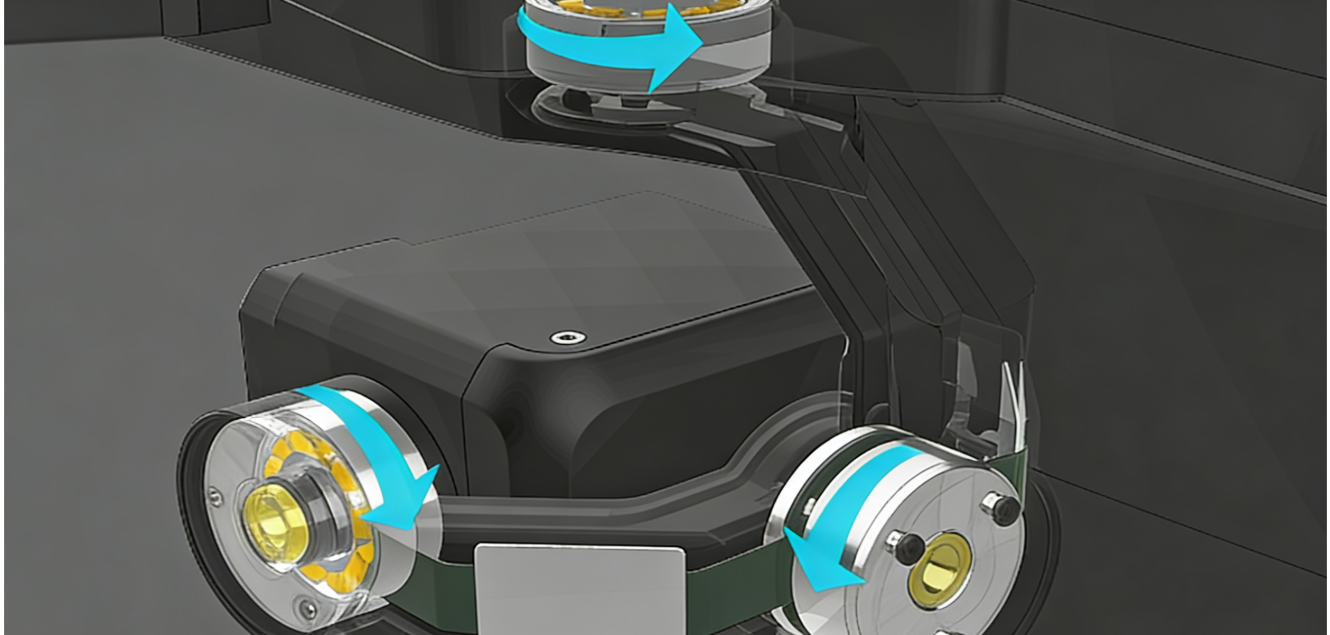

4. Q: How is image stabilization achieved during flight?
A: The AP-SG is equipped with a 3-axis stabilized gimbal, which compensates for drone movement in real time and ensures stable image capture under dynamic flight conditions.

5. Q: Can the system perform real-time data transmission?
A: Yes. The AP-SG supports real-time image and video transmission, allowing operators to monitor visible and thermal data simultaneously for efficient decision-making in inspection and surveillance scenarios.

6. Q: What applications is the AP-SG best suited for?
A: The AP-SG is ideal for applications such as power line inspection, search and rescue, industrial monitoring, security surveillance, and environmental observation, where multi-spectrum imaging and thermal analysis are required.

7. Q: Does the AP-SG support temperature analysis and measurement?
A: Yes. The system provides real-time temperature measurement and supports multiple color palettes and area-based temperature analysis, enabling precise thermal diagnostics for industrial and safety applications.

8. Q: How does the AP-SG improve operational efficiency compared to standard cameras?
A: By combining thermal and visible imaging in a single payload, the AP-SG allows users to detect both visual details and heat anomalies simultaneously, reducing inspection time and improving accuracy in complex operational environments.
