Mini
Dual fisheye and IMU deliver real-time 6DOF poses with auto-drift correction for compact drones and robots.
DIMANTIONS
|
Height (mm) |
101.6 |
|
Width (mm) |
32.25 |
|
Length (mm) |
17.70 |
|
Weight |
68g |
|
FOV |
164.7°（H）,164.7°（D）,123.8°（V） |
|
Resolution @ frame rate |
640x480 @ 40fps |
|
Baseline(mm) |
60 |
|
Ingress Protection |
IP68 |
PRODUCT DETAILS
|
Shutter Type |
Global shutter |
|
Interface |
Type-C、UART |
|
Power supply |
DC 5V |
|
Transport protocol |
HTTP/ROS2 |
|
Support Platform |
Windows/Linux |
|
Power Consumption |
Full load power consumption < 2.7W |
|
Algorithm output / IMU |
200Hz |

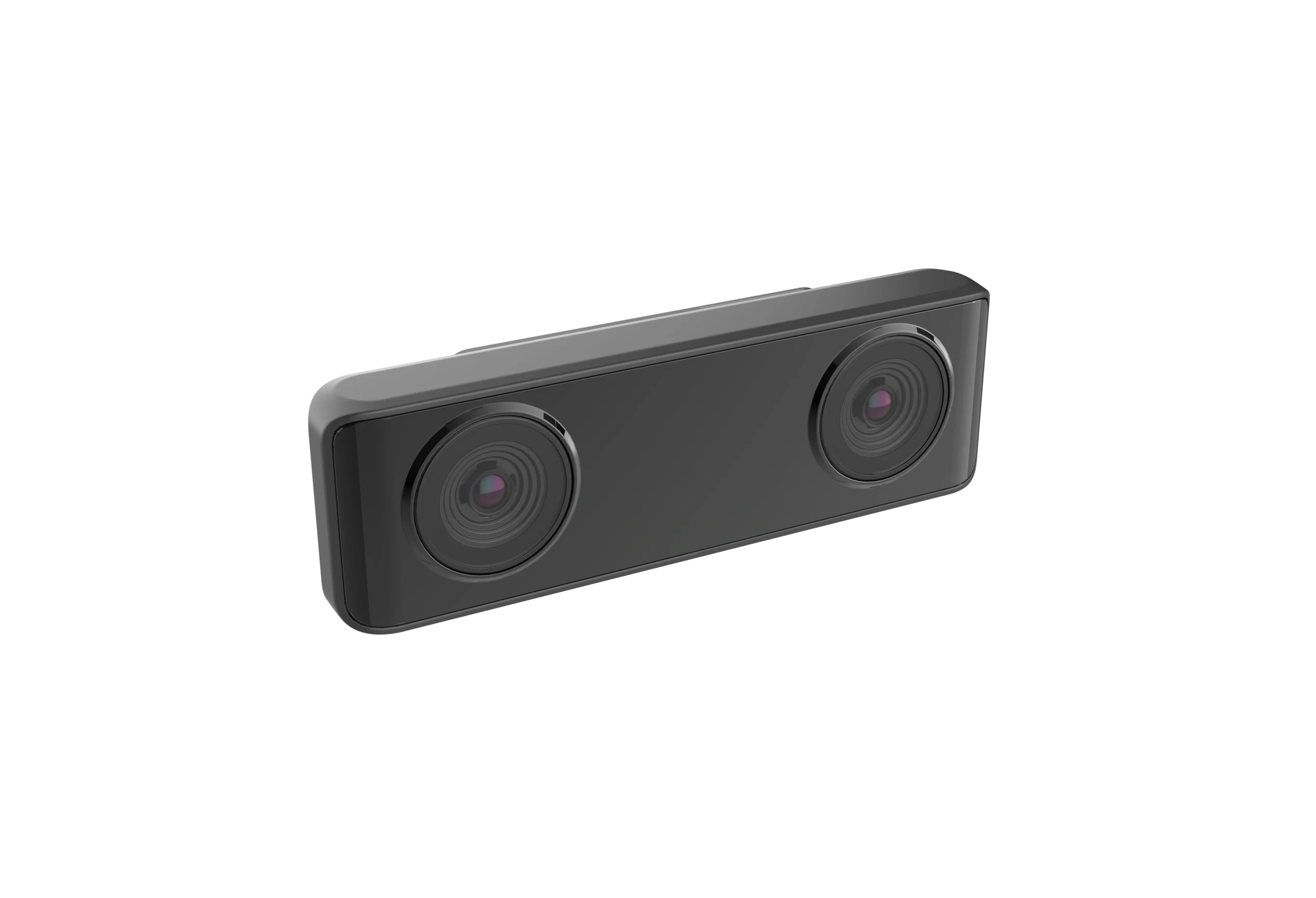

Dual Fisheye, Global Shutter
Resolution @ Frame Rate: 640x480 @ 40 FPS
DFOV=HFOV=164.7°, VFOV=123.8°
Powerful chip, enabling superior performance
The K1 chip, built on the open-source and self-controlled RISC-V architecture, delivers 30% higher single-core performance than ARM A55. Mini is the spatial computing module powered by this next-generation RISC-V chip
Precision Control. Exceptional Resilience
With its metal reinforcement process, this module achieves a 245% improvement in deformation resistance. Its excellent environmental adaptability ensures stable operation and maintains precise calibration even under extreme temperatures
Waterproof & Dustproo

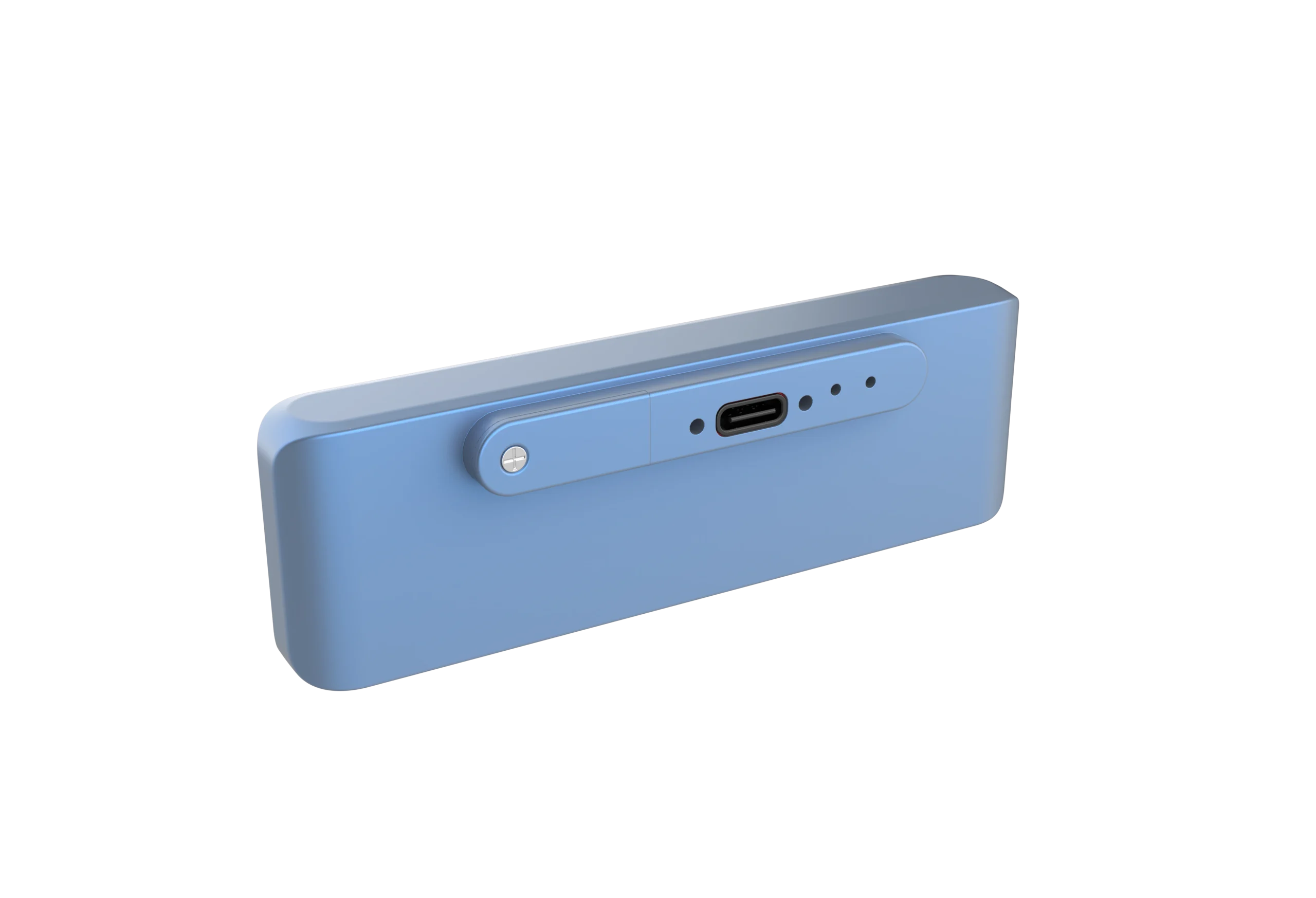

Equipped with rubber gaskets and protective caps to ensure safety and reliability in damp or submerged conditions.
Designed for comfort
At only 68g, the Mini enables autonomous navigation for drones
Applications
Lawn
Robot
Cleaning
Robot
Drone
Education
Research
