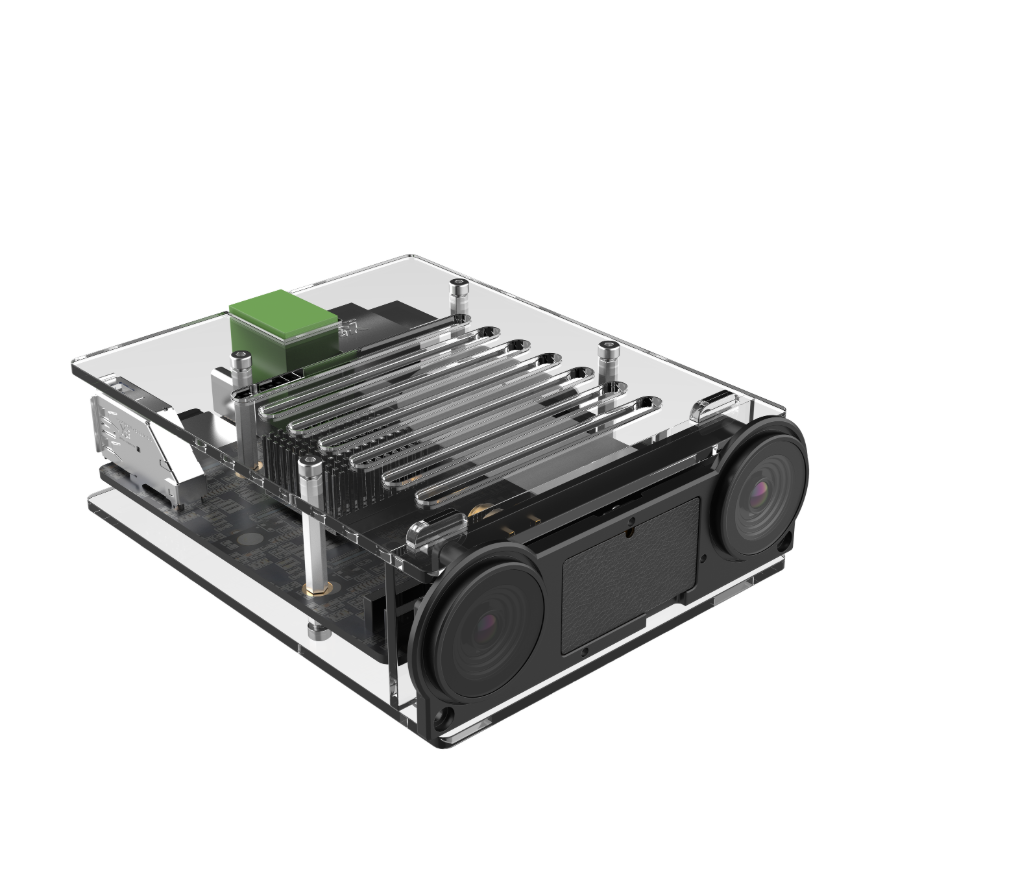

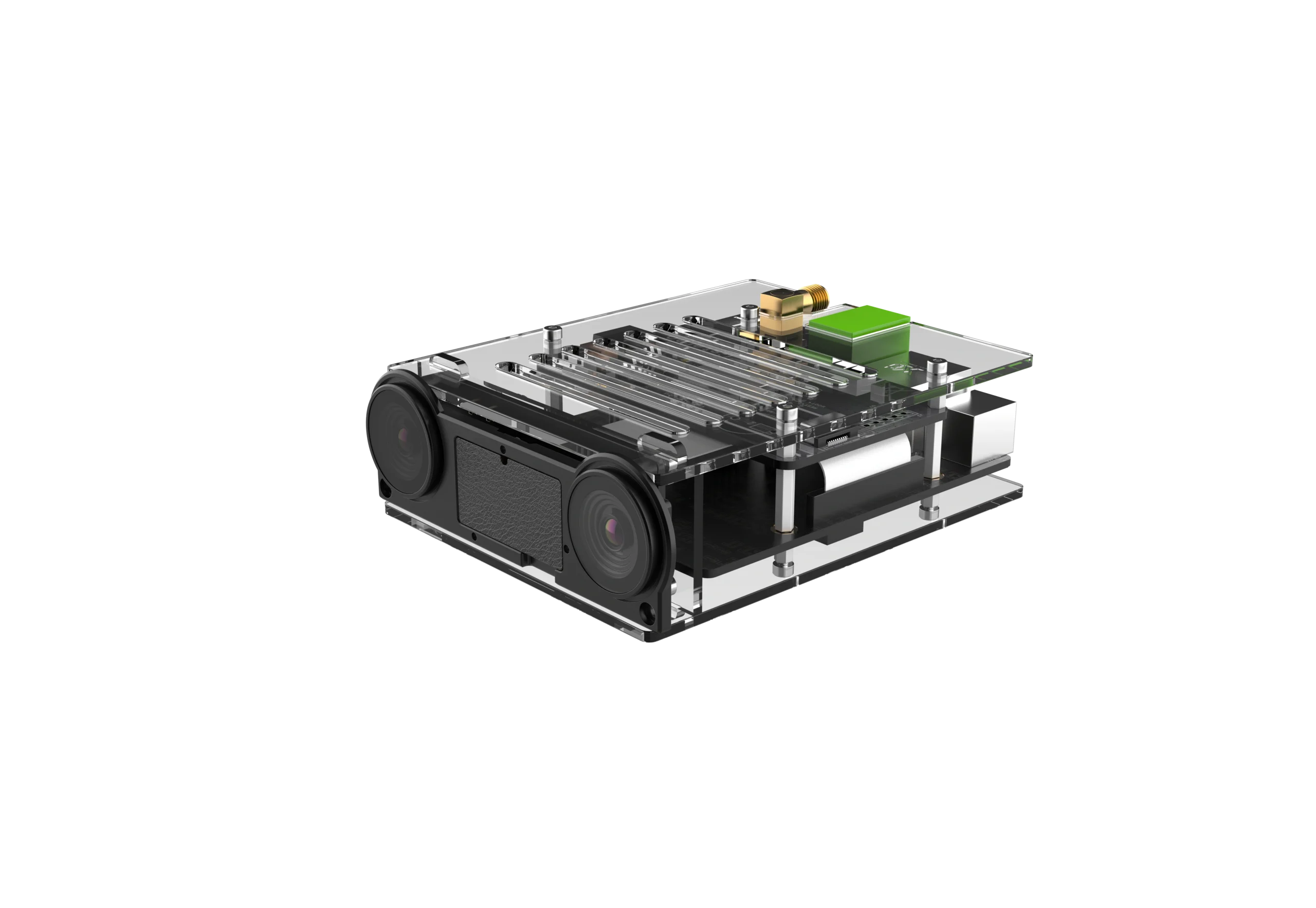

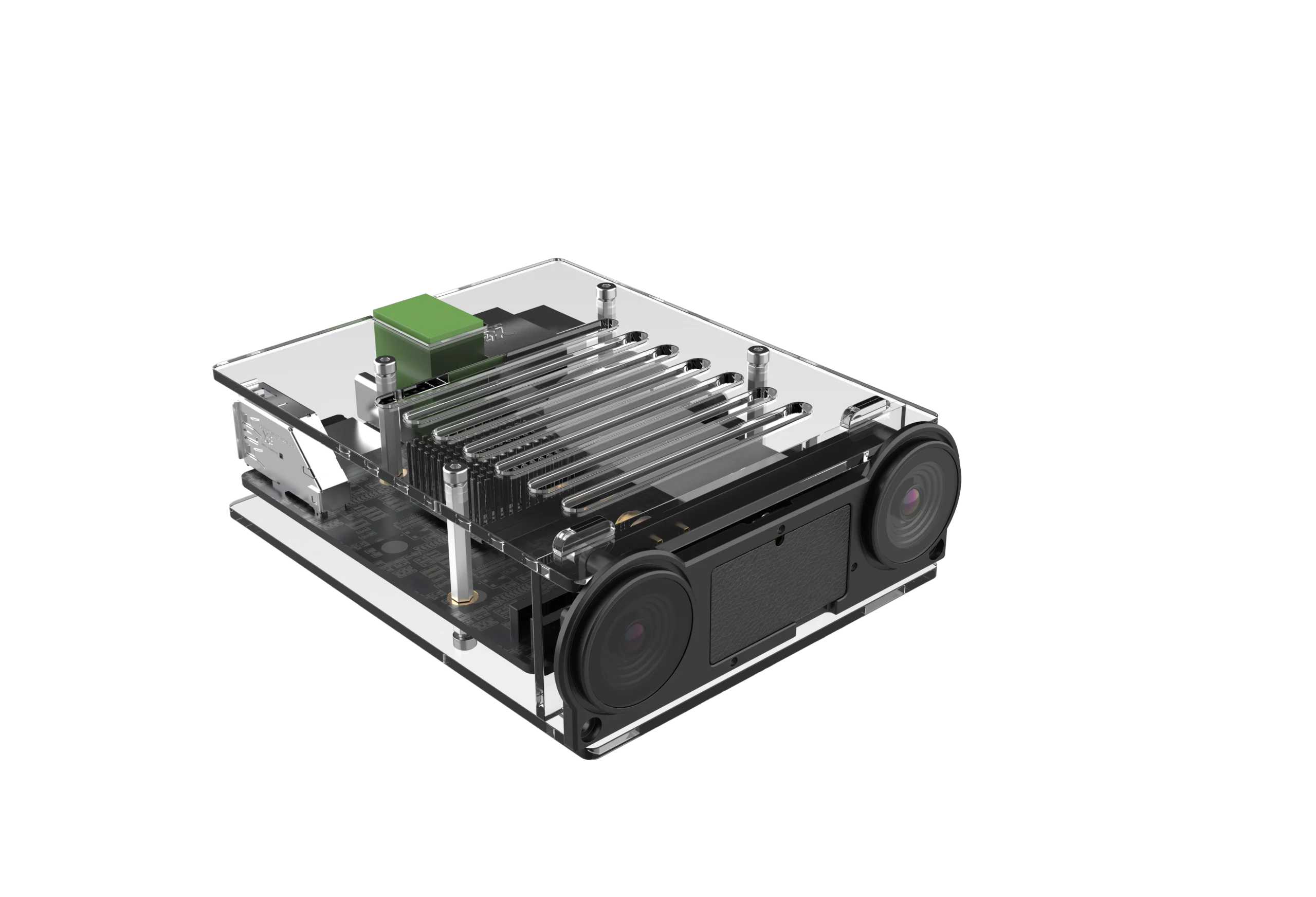

Viobot2
DIMANTIONS
|
CPU |
Cortex-A76*4 + Cortex-A55*4, up to 2.4GHz |
|
GPU |
Support OpenGL ES1.1/2.0/3.1/3.2 |
|
NPU |
6TOPS |
|
Memory & Storage |
4GB/8GB & 32GB |
|
Resolution @ frame rate |
640x480 @ 40fps |
|
Depth Range |
0.1m-3m |
|
Baseline(mm) |
60 |
|
FOV |
164.7°（H）,164.7°（D）,123.8°（V） |
PRODUCT DETAILS
|
Shutter Type |
Global shutter |
|
Interface |
USB2.0/3.0、Type-C、RJ45、CAN、I2C、UART、SMA |
|
Power supply |
DC 9~24V |
|
Transport protocol |
HTTP/ROS1/ROS2 |
|
Power Consumption |
11W |
|
Interface |
USB2.0/3.0、Type-C、RJ45、CAN、I2C、UART、SMA |
Powerful chip, enabling superior performance
Powered by the 3588 chip, its robust computing capability delivers superior performance
All-in-One Solution, Powered by Intelligence
An integrated autonomy platform, fusing sensors, algorithms, and compute. Empowers robots across industries with precise localization, real-time mapping, and robust navigation in unknown environments.
navigation
Offers ready-to-use path planning routinesfor rapid autonomous navigation development
Mapping
Point cloud mapping constructs the 3D world
Obstacle Avoidance
Real-time stereo depth perception of frontal obstacles
Location
Stereo module,Centimeter Accuracy Anywhere
Powerful chip, enabling superior performance
Enables precise obstacle avoidance at speeds up to 2m/s for drones, lawn robots, and other low-speed platforms through stereo fisheye depth perception
Just Add an RGB Camera for Precise Object Segmentation
We support the addition of an RGB camera to enable object recognition and semantic segmentation, such as grass segmentation and target tracking
From Reality to Digital, 3D Reconstruction at One Click
Our proprietary 3D reconstruction algorithm runs 9 times faster than industry counterparts
Extensive Interfaces for Rapid Deployment
Offers rich data interfaces to minimize sensor calibration efforts, with full support for flexible secondary development
Applications
Electrical Inspection
Traffic Inspection
Fire Prevention
Emergency Rescue
